Using plantuml

Added in eventcatalog@2.46.0

EventCatalog supports plantuml in all your markdown files.

This let's you create Class Diagrams, Sequence Diagrams, Class Diagrams, State Diagrams and much more.

Using plantuml in EventCatalog​

To use plantuml you need to use the plantuml code block in any markdown file.

Example​

```plantuml
@startuml
!define Table(name,desc) class name as "desc" << (T,#E5E7EB) >>
!define PK(x) <u>x</u>
!define FK(x) <i>x</i>

' ===== Core Tables =====

Table(Customers, "Customers") {
  PK(customerId): UUID
  firstName: VARCHAR
  lastName: VARCHAR
  email: VARCHAR
  phone: VARCHAR
  dateRegistered: TIMESTAMP
}

Table(Orders, "Orders") {
  PK(orderId): UUID
  FK(customerId): UUID
  orderDate: TIMESTAMP
  status: VARCHAR
  totalAmount: DECIMAL
}

Table(Products, "Products") {
  PK(productId): UUID
  name: VARCHAR
  description: TEXT
  price: DECIMAL
  stockQuantity: INT
}

Table(OrderItems, "Order Items") {
  PK(id): UUID
  FK(orderId): UUID
  FK(productId): UUID
  quantity: INT
  unitPrice: DECIMAL
}

Table(Payments, "Payments") {
  PK(paymentId): UUID
  FK(orderId): UUID
  amount: DECIMAL
  method: VARCHAR
  status: VARCHAR
  paidAt: TIMESTAMP
}

Table(InventoryEvents, "Inventory Events") {
  PK(eventId): UUID
  FK(productId): UUID
  eventType: VARCHAR
  quantityChange: INT
  eventTime: TIMESTAMP
}

Table(Subscription, "Subscriptions") {
  PK(subscriptionId): UUID
  FK(customerId): UUID
  plan: VARCHAR
  status: VARCHAR
  startDate: TIMESTAMP
  endDate: TIMESTAMP
}

' ===== Relationships =====

Customers ||--o{ Orders : places
Orders ||--o{ OrderItems : contains
Products ||--o{ OrderItems : includes
Orders ||--o{ Payments : paid_by
Products ||--o{ InventoryEvents : logs
Customers ||--o{ Subscription : subscribes

@enduml
```_

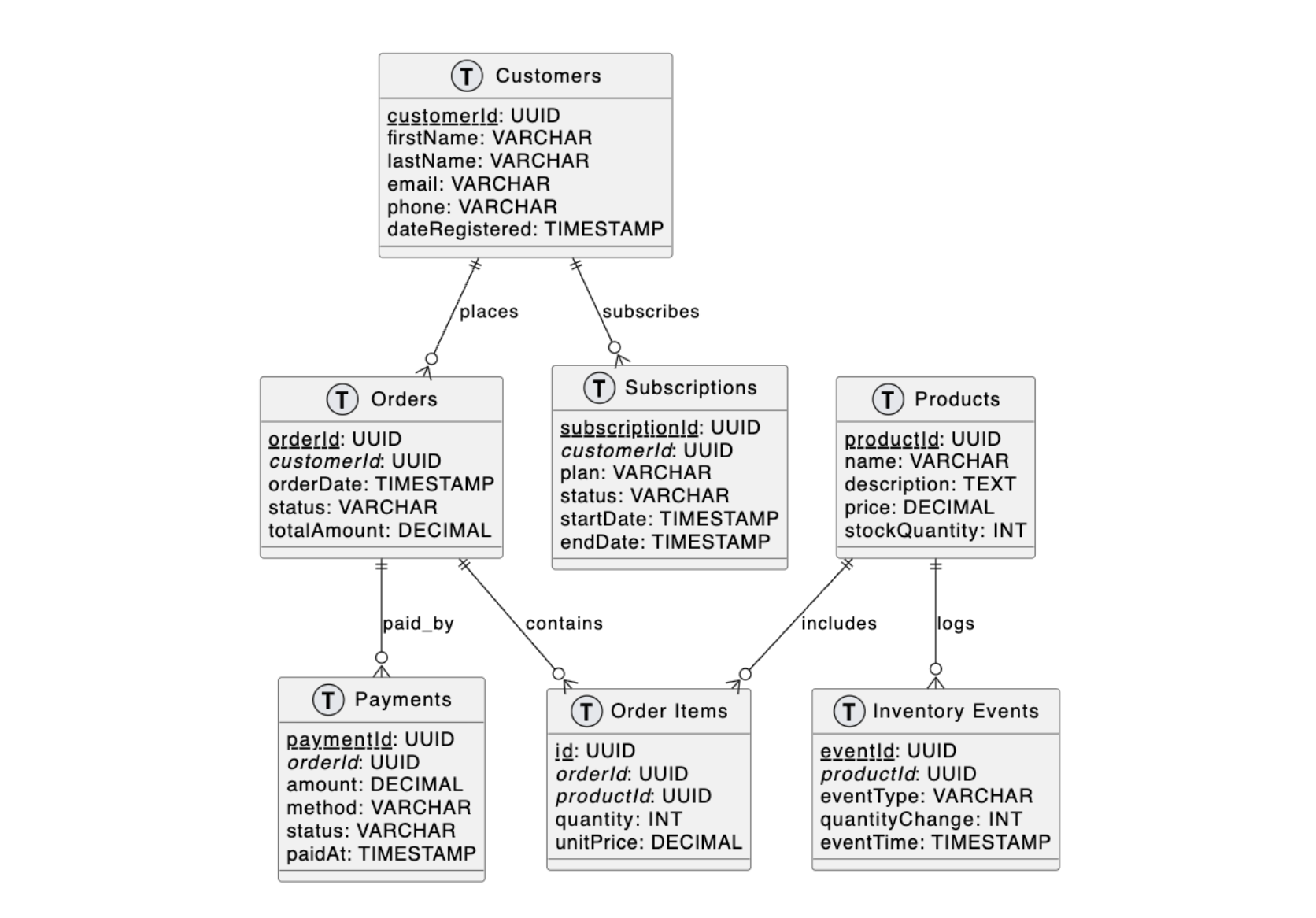

This example will output the following in the markdown file.

Example output of plantuml

How it works?​

The PlantUML implementation takes your content and converts it to a PNG image using https://www.plantuml.com/plantuml/svg.
