Model flow steps

Nodes are the building blocks of flows. They are used to represent the different steps in a flow.

With flow nodes you can reference your services, events, commands and queries, channels, external services, users (actors), data stores, data products, or create your own custom nodes.

Common step properties

Every flow step (regardless of node type) supports these properties:

Property	Type	Required	Description
`id`	`string \| number`	Yes	Unique identifier for the step
`title`	`string`	No	The label displayed on the node in the flow diagram. Defaults to the name of the resource the step references, the actor's, external system's or custom node's name, or the step's `id` (optional since 5.0.0)
`summary`	`string`	No	A short description shown in the node sidebar
`type`	`string`	No	Accepted but ignored. The node type comes from the node type property the step uses (see Flow node types)
`next_step`	Step reference	No	The next step in the flow (cannot be used with `next_steps`)
`next_steps`	Step reference[]	No	Multiple next steps for branching (cannot be used with `next_step`)
`x-*`	any	No	Your own metadata. Custom step properties must start with `x-`

Type exclusivity rule

Each step can only use one node type property. You cannot combine message, service, agent, channel, flow, container, dataProduct, actor, custom, or externalSystem on the same step. From 5.0.0, a step that uses two node types fails the build (see Mistakes in flow steps).

Mistakes in flow steps

Added in eventcatalog@5.0.0

EventCatalog checks your flow steps when it builds, so mistakes don't fail silently.

These fail the build, with a message naming the step and what to change:

Unknown step properties, such as a typo like servce:. Custom properties must start with x- (for example x-runbook).
A step that uses two node types, for example message and service on the same step. Split it into two steps.
A step that uses both next_step and next_steps. Use next_step for one next step, or next_steps for several.

Step "checkout" points at message and service. A step can only be one thing, so split it into two steps.
Step "checkout" has both next_step and next_steps. Use next_step for one next step, or next_steps for several.
Unknown property "servce". Custom properties must start with "x-".

These log a warning naming the flow and step, and the build carries on:

A next_step or next_steps entry that points at a step id that isn't in the flow. The arrow is left out.
A reference to a resource that isn't in the catalog (for example a renamed service). The step is shown as a plain step.

[flows] Flow "Checkout" (1.0.0): step "start" leads to step "paymnet", but the flow has no step with that id.
[flows] Flow "Checkout" (1.0.0): step "start" points at service "OrderServce" (latest), which is not in the catalog, so it is shown as a plain step.

To catch these before you build, run the EventCatalog Linter. It reports the same mistakes, including next steps that aren't in the flow (refs/flow-step-exists).

Connecting steps

Use next_step or next_steps (not both) to connect steps together.

A step reference can be:

A string or number matching another step's id (e.g. next_step: "step-2")
An object with id and an optional label for the edge

# Simple reference
next_step: "step-2"

# Reference with edge label
next_step:
  id: "step-2"
  label: "on success"

# Multiple next steps (branching)
next_steps:
  - id: "step-success"
    label: "on success"
  - id: "step-failure"
    label: "on failure"

Flow node types

default — A blank node type with just a title in your flow
actor — Represents a person in your flow diagram
externalSystem — Represents an external system in your flow diagram
message — Represents an event, command or query resource in EventCatalog
channel — Represents a channel resource in EventCatalog (added in EventCatalog 5.0.0)
service — Represents a service resource in EventCatalog
agent — Represents an agent resource in EventCatalog (added in EventCatalog 3.41.0)
flow — Represents a flow in EventCatalog (added in EventCatalog 2.34.2)
container — Represents a data store (container) resource in EventCatalog
dataProduct — Represents a data product resource in EventCatalog
custom — A custom node type with configurable title, summary, icon, properties and more

default node type

A blank node type with just a title in your flow. No additional properties are needed beyond the common step properties. If you leave out title, the node shows the step's id.

steps:
  - id: "step-1"
    title: "This value will be shown in the node on the flow diagram"

actor

Actor represents a person in your flow diagram.

Actor properties

Property	Type	Required	Description
`name`	`string`	Yes	The name of the actor
`summary`	`string`	No	A short description of the actor (added in EventCatalog 2.55.6)

steps:
  - id: "step-1"
    title: "Example Step of a Actor"
    actor:
      name: "Dave"
      summary: "This is a summary of the actor"

externalSystem

Represents an external system in your flow diagram.

External system properties

Property	Type	Required	Description
`name`	`string`	Yes	The name of the external system
`summary`	`string`	No	A short description of the external system
`url`	`string` (valid URL)	No	A link to the external system

steps:
  - id: "step-1"
    title: "Example Step of a externalSystem"
    externalSystem:
      name: "Google"
      summary: "Search engine"
      url: "https://google.com"

message

Represents and refers to an event, command or query resource in EventCatalog.

Message properties

Property	Type	Required	Description
`id`	`string`	Yes	The id of the event, command or query in your catalog
`version`	`string`	No	The version to reference (defaults to `latest`)

steps:
  - id: "step-1"
    title: "Example Step of a Event"
    message:
      id: "order-placed"
      version: "0.0.1"

channel

Added in eventcatalog@5.0.0

Represents and refers to a channel resource in EventCatalog. The step renders as a channel node that links to the channel's docs.

Channel properties

Property	Type	Required	Description
`id`	`string`	Yes	The id of the channel in your catalog
`version`	`string`	No	The version to reference (defaults to `latest`)

steps:
  - id: "orders_topic"
    title: "Orders topic"
    channel:
      id: "orders"
      version: "1.0.0"
    next_step:
      id: "inventory_service"
      label: "Deliver to subscribers"

service

Represents and refers to a service resource in EventCatalog.

Service properties

Property	Type	Required	Description
`id`	`string`	Yes	The id of the service in your catalog
`version`	`string`	No	The version to reference (defaults to `latest`)

steps:
  - id: "step-1"
    title: "Example Step of a Service"
    service:
      id: "order-service"
      version: "0.0.1"

agent

Added in eventcatalog@3.41.0

Represents and refers to an agent resource in EventCatalog. Agents render as purple/violet nodes in the visualiser so they are easy to distinguish from services. When a flow references an agent, the agent's page shows a back-link to the flow.

Agent properties

Property	Type	Required	Description
`id`	`string`	Yes	The id of the agent in your catalog
`version`	`string`	No	The version to reference (defaults to `latest`)

steps:
  - id: "fraud_review"
    title: "Fraud Review Agent"
    agent:
      id: "FraudReviewAgent"
      version: "0.0.1"
    next_steps:
      - id: "payment_approved"
        label: "Approved"
      - id: "payment_declined"
        label: "Declined"

flow

Added in eventcatalog@2.34.2

Represents and refers to a flow resource in EventCatalog. Useful for reusing flows in your flow diagrams.

Flow properties

Property	Type	Required	Description
`id`	`string`	Yes	The id of the flow in your catalog
`version`	`string`	No	The version to reference (defaults to `latest`)

steps:
  - id: "step-1"
    title: "Example Step of a Flow"
    flow:
      id: "order-flow"
      version: "0.0.1"

Expand inline

Added in eventcatalog@3.29.0

Click a flow node in the visualiser to expand the referenced flow's steps inline. Use the Collapse button in the expanded node's header to restore the single-node view. The graph recentres automatically on both expand and collapse, and expanded steps join the parent flow's step walkthrough navigation.

container

Added in eventcatalog@3.36.3

Represents and refers to a data store (container) resource in EventCatalog. When a flow references a container, the container's sidebar automatically shows a "Flows" section linking back to the referencing flow.

Container properties

Property	Type	Required	Description
`id`	`string`	Yes	The id of the container in your catalog
`version`	`string`	No	The version to reference (defaults to `latest`)

steps:
  - id: "orders_db"
    title: "Orders DB"
    container:
      id: "orders-db"
      version: "1.0.0"
    next_step:
      id: "next_step"
      label: "Persist order records"

dataProduct

Added in eventcatalog@3.36.3

Represents and refers to a data product resource in EventCatalog. When a flow references a data product, the data product's sidebar automatically shows a "Flows" section linking back to the referencing flow.

Data product properties

Property	Type	Required	Description
`id`	`string`	Yes	The id of the data product in your catalog
`version`	`string`	No	The version to reference (defaults to `latest`)

steps:
  - id: "order_analytics"
    title: "Order Analytics"
    dataProduct:
      id: "order-analytics"
      version: "1.0.0"
    next_step:
      id: "next_step"
      label: "Prepare fulfillment KPIs"

custom

Added in eventcatalog@2.30.6

The custom node allows you to define any custom node you want in your flow diagram.

Use cases could include:

A custom node that represents a scheduled job
A custom node that represents a batch job
A custom node that represents a decision
A custom node that represents a process
A custom node that represents an aggregate

Custom nodes can be anything you want.

You can view a UI example of a custom nodes here.

Custom node properties

Property	Type	Required	Description
`title`	`string`	No	The title shown on the node. Defaults to the step's `title` (required before 5.0.0)
`icon`	`string`	No	Icon shown on the node (see Heroicons for the list of icons)
`type`	`string`	No	A type label shown on the sidebar of the node (e.g. "Scheduler", "Database")
`summary`	`string`	No	A short description of the node
`url`	`string` (valid URL)	No	A link associated with the custom node
`color`	`string`	No	The color of the node (see Tailwind colors)
`properties`	`Record<string, string \| number>`	No	Key-value pairs shown in the node. URL values are rendered as links
`height`	`number`	No	The height of the node (be careful going too high, the diagram does not calculate the graph based on the height of nodes)
`menu`	`{ label: string, url?: string }[]`	No	Right-click context menu items

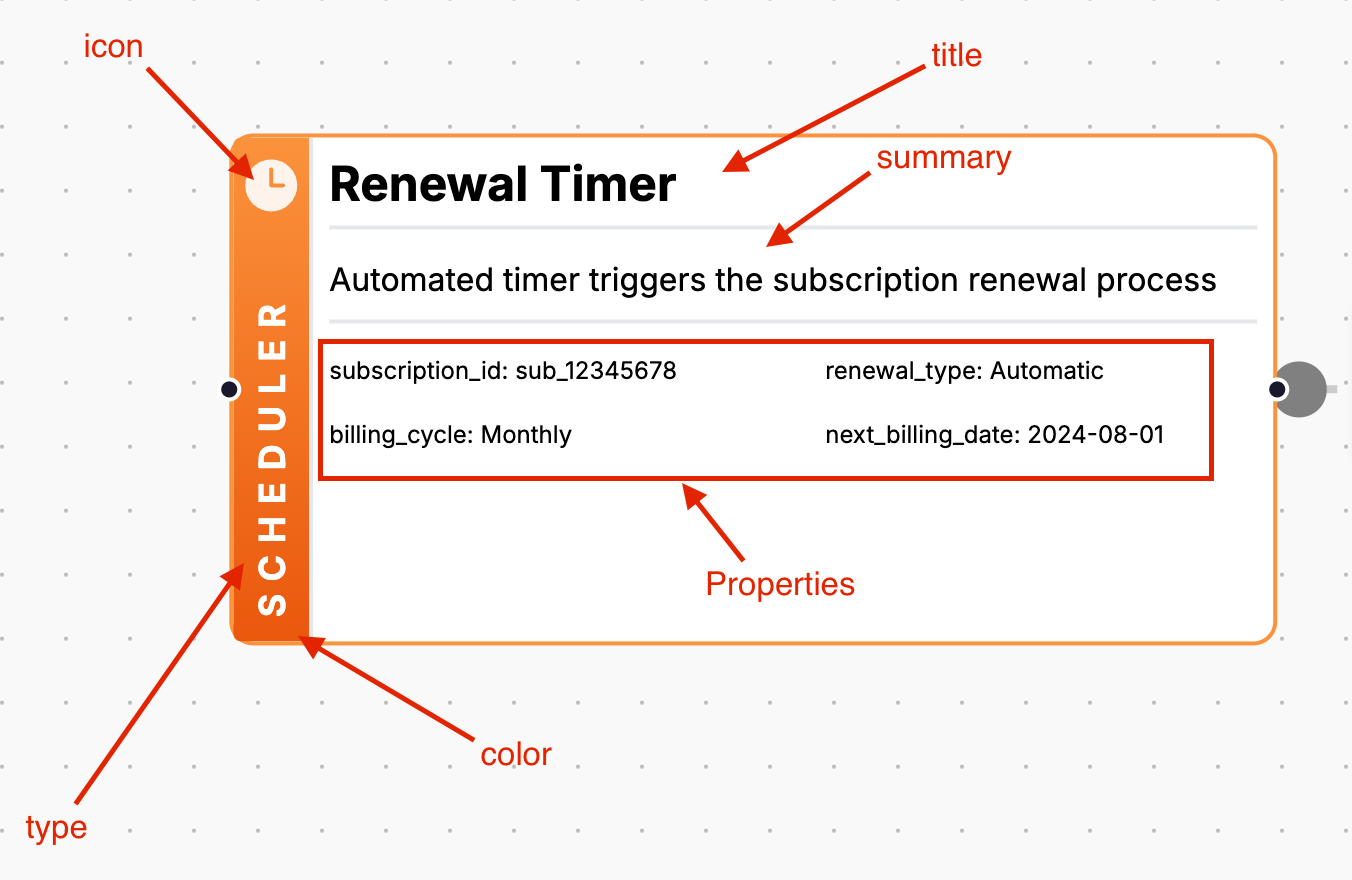

UI Example

MDX Example

This example shows a custom node that represents a scheduler.

steps:
  - id: "renewal_timer_triggered"
    title: "Renewal Period Reached"
    custom:
      title: "Renewal Timer"
      color: "orange"
      icon: "ClockIcon"
      type: "Scheduler"
      summary: "Automated timer triggers the subscription renewal process"
      height: 8
      properties:
        subscription_id: "sub_12345678"
        renewal_type: "Automatic"
        billing_cycle: "Monthly"
        next_billing_date: "2024-08-01"
      menu:
        - label: "View scheduler configuration"
          url: "https://docs.example.com/scheduler"
        - label: "Subscription timing documentation"
          url: "https://docs.example.com/subscription-timing"
    next_step:
      id: "check_subscription_status"
      label: "Verify subscription status"

You can find a full example on GitHub here.
