Creating flows

View as Markdown
Added in eventcatalog@2.5.0

Flows live in a /flows folder. EventCatalog will discover any index.mdx file inside a flows directory, regardless of where that directory lives in your catalog.

You can place flows:

  • At the root of your catalog: /flows/{Flow Name}/index.mdx
  • Inside a domain: /domains/Orders/flows/{Flow Name}/index.mdx
  • Inside a service: /services/PaymentService/flows/{Flow Name}/index.mdx
  • In subdirectories to group related flows: /flows/Payments/{Flow Name}/index.mdx

The contents are split into two sections, frontmatter and the markdown content.

Here is an example of what a flow file may look like.

/flows/CancelSubscription/index.mdx (example)
---
id: "CancelSubscription"
name: "User Cancels Subscription"
version: "0.0.1"
summary: "Flow for when a user has cancelled a subscription"
steps:
  - id: "cancel_subscription_initiated"
    title: "Cancels Subscription"
    summary: "User cancels their subscription"
    # define the actor for, in this case it's a user.
    actor:
      name: "User"
    # What happens next? Define the next step
    next_step:
      id: "cancel_subscription_request"
      label: "Initiate subscription cancellation"

  - id: "cancel_subscription_request"
    title: "Cancel Subscription"
    # This step is a message, include the message and version
    message:
      id: "CancelSubscription"
      version: "0.0.1"
    next_step:
      id: "subscription_service"
      label: "Proceed to subscription service"

  - id: "stripe_integration"
    title: "Stripe"
    # This is an external system (e.g Stripe)
    externalSystem:
      name: "Stripe"
      summary: "3rd party payment system"
      url: "https://stripe.com/"
    next_step:
      id: "subscription_service"
      label: "Return to subscription service"

  - id: "subscription_service"
    title: "Subscription Service"
    # This node is a service, include that.
    service:
      id: "SubscriptionService"
      version: "0.0.1"
    # Define multiple steps
    next_steps:
      - id: "stripe_integration"
        label: "Cancel subscription via Stripe"
      - id: "subscription_cancelled"
        label: "Successful cancellation"
      - id: "subscription_rejected"
        label: "Failed cancellation"

  - id: "subscription_cancelled"
    title: "Subscription has been Cancelled"
    message:
      id: "UserSubscriptionCancelled"
      version: "0.0.1"
    next_step:
      id: "notification_service"
      label: "Email customer"

  - id: "subscription_rejected"
    title: "Subscription cancellation has been rejected"

  - id: "notification_service"
    title: "Notifications Service"
    service:
      id: "NotificationService"
      version: "0.0.2"

---

This flow documents what happens when a User Cancels Subscription in our system.

<NodeGraph />

<!-- Add any markdown you want, the workflow will also render in its own page /docs/flows/{Flow}/{version} -->

Once this file is added, the event will automatically appear across EventCatalog.

Organize with subdirectories​

You can group related flows by placing them in subdirectories inside any flows folder. EventCatalog will discover them regardless of nesting depth.

flows/
  Payments/
    ProcessPayment/
      index.mdx
    RefundPayment/
      index.mdx
  Subscriptions/
    CancelSubscription/
      index.mdx

The flow id in your frontmatter is what EventCatalog uses for routing and references. The directory structure is purely for organization.

Add badges​

Badges appear on the flow page and in catalog listings. Use them to label flows by category, status, or team, and users can filter flows by badge.

Example
---
id: ProcessPayment
name: Process Payment
version: 1.0.0
badges:
  - content: Payments
    backgroundColor: blue
    textColor: blue
  - content: Critical
    backgroundColor: red
    textColor: red
---

Write flow content​

You can write any Markdown inside a flow.

Each flow gets its own page, so use this space to fully explain how it works.

You can also use interactive components to enrich your documentation.

Add child flows / reusable flows​

Added in eventcatalog@2.34.2

You can reference a flow from another flow. This lets you reuse flows in your flow diagrams, useful if you have complex flows that reuse information from another flow.

To reference a flow from another flow, use the flow node type.

steps:
  - id: "step-1"
    title: "Example Step of a Event"
    flow:
      id: "order-flow"
      version: 0.0.1

This will render the order-flow within the described flow. Right clicking on the order-flow node will let you navigate to the referenced flow.

Expand sub-flows inline​

Added in eventcatalog@3.29.0

Click any sub-flow node in the visualiser to expand its steps inline inside the parent flow diagram. Click the Collapse button in the expanded node's header to restore the single-node view.

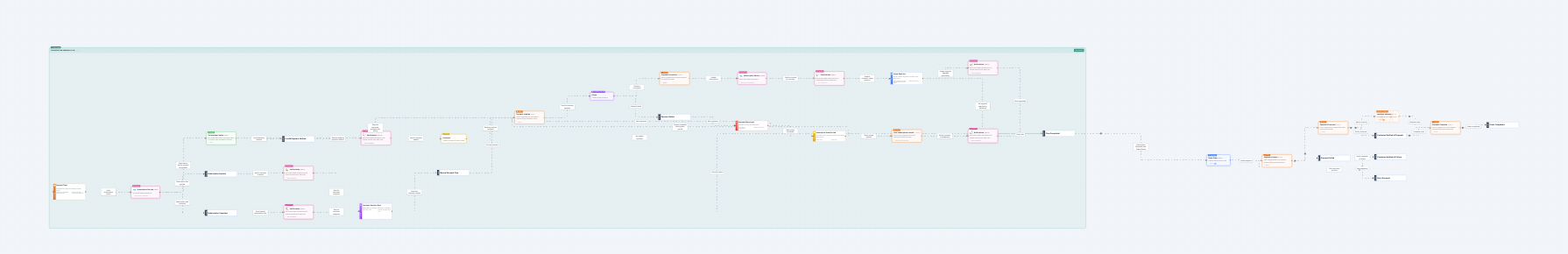

Expanded sub-flow showing inline steps inside a parent flow diagram

Expanded steps participate in the step-by-step walkthrough, so you can navigate through them using the next/previous controls without leaving the parent flow. Nested sub-flows (a sub-flow that itself references another flow) also expand correctly.

Tips for flow content​

It's entirely up to you what you want to add to your flows markdown content but here are a few things you might want to consider.

  • Context of the flow. What is it? Why does it exist?
  • Examples of how to trigger the flow?
  • Any edit/contributing guidelines?

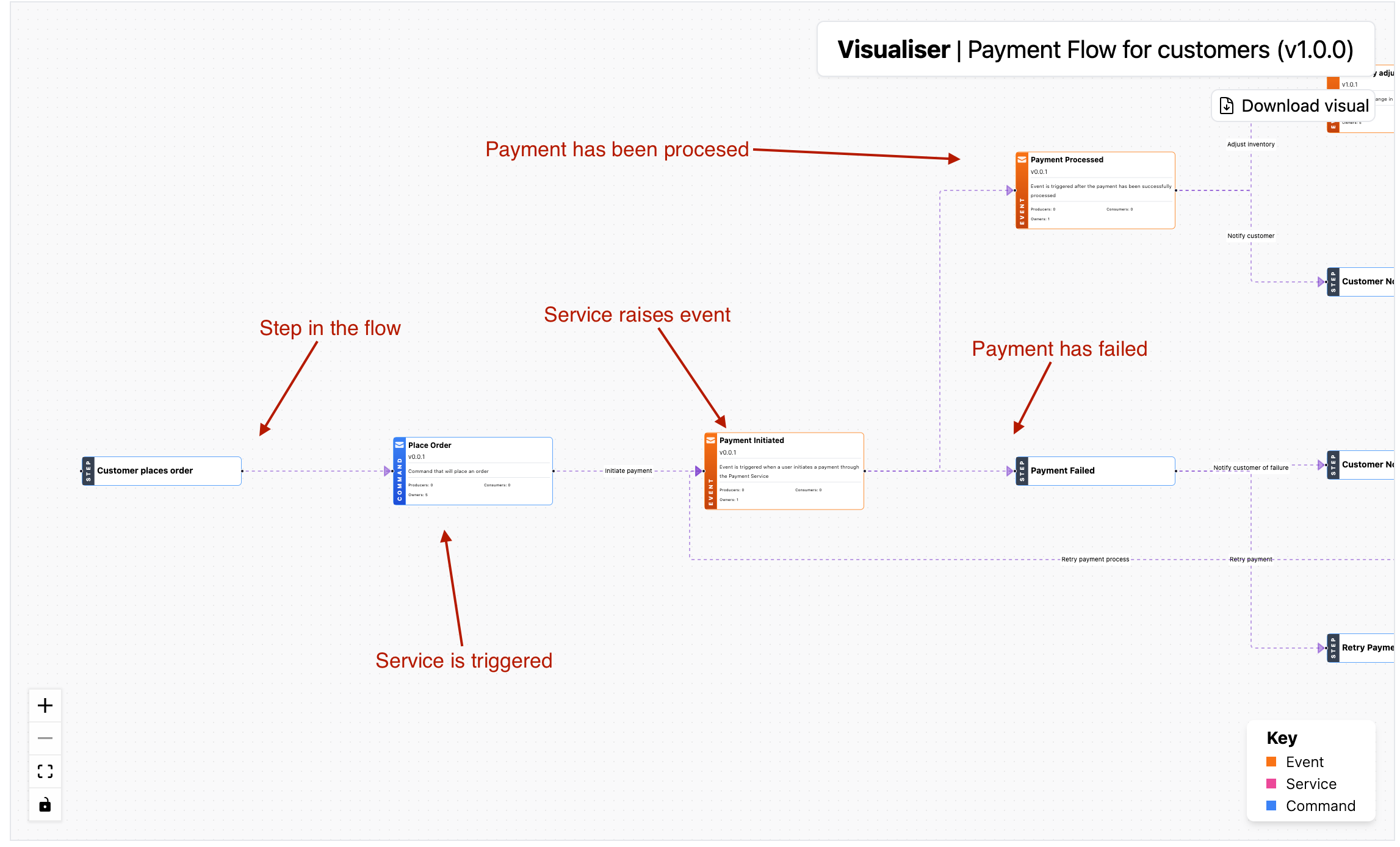

What do flows look like in EventCatalog?​

Example

See a flow example.
