Breaking Changes Agent

View as Markdown

---

The Breaking Changes agent reviews schema changes in pull requests and reports whether they are likely to break existing consumers.

When a pull request changes a message schema, the agent checks whether the diff removes or renames fields, changes types, adds new required fields, narrows enums, or introduces similar compatibility risks. If it finds a breaking change, it traces the schema through your EventCatalog and comments on the source pull request with the breaking lines and affected consumers.

The Breaking Changes agent is read-only. It does not edit your catalog or open documentation pull requests.

How it works

When a pull request is opened, the agent:

1. Checks out your catalog so it can understand the existing producers, consumers, messages, schemas, and flows.
2. Collects the changed source files from the pull request.
3. Filters to schema files using the configured schema extensions.
4. Scores each schema change for breaking-change risk. Additive changes, such as adding an optional field, are skipped.
5. Finds affected consumers for each breaking schema change by tracing the message through EventCatalog.

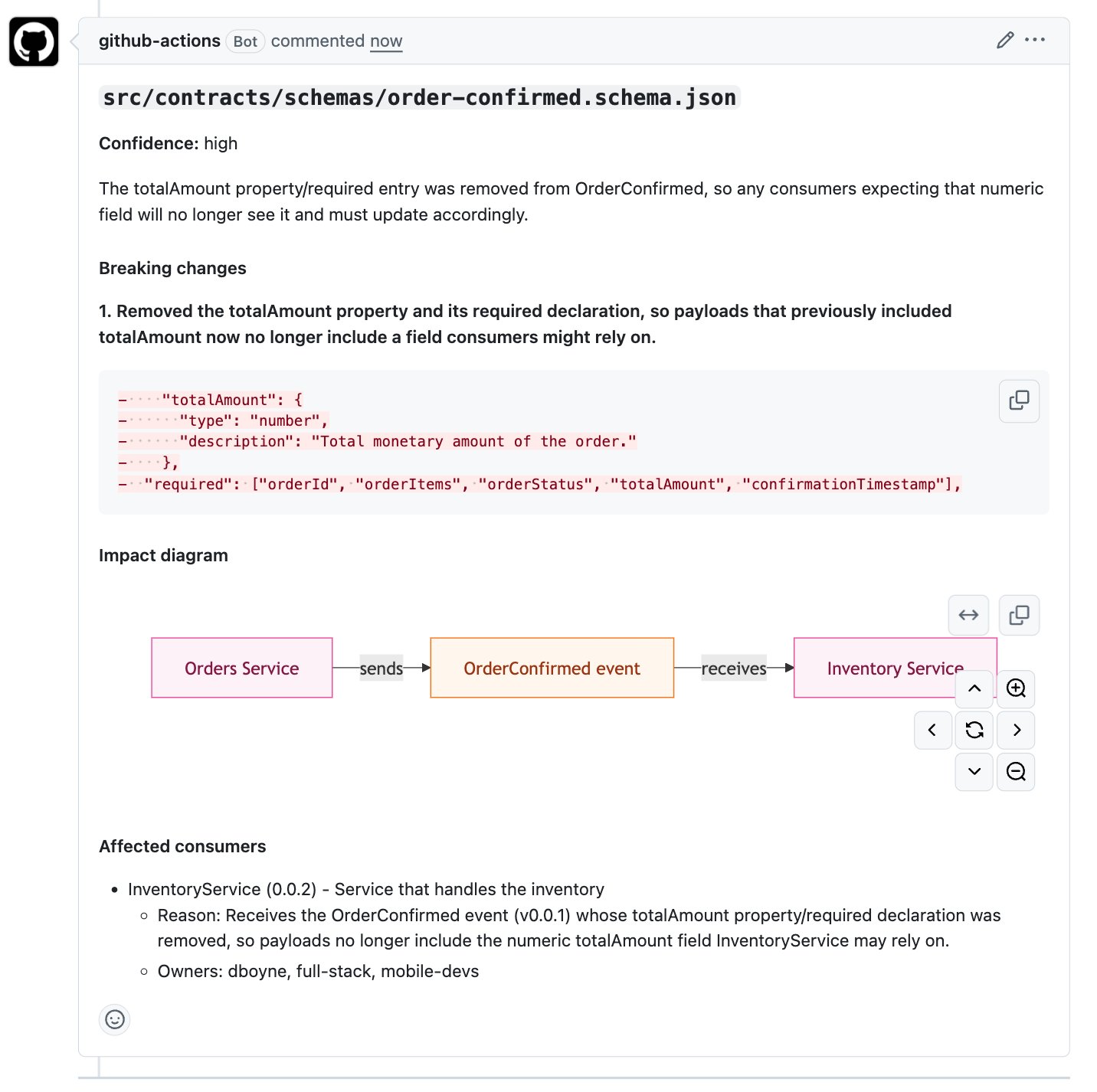

6. Comments on your source pull request with the breaking change, the relevant diff lines, and the consumers that could be affected.

If the pull request has no changed schema files, or only non-breaking schema changes, the workflow exits without creating a catalog pull request.

Getting started

The Breaking Changes agent runs as a GitHub Action.

1. Add a new GitHub workflow

Create a .github/workflows/eventcatalog-breaking-changes.yml file in the repository where your source changes happen.

on:
  pull_request:

jobs:
  eventcatalog-breaking-changes:
    runs-on: ubuntu-latest
    permissions:
      contents: read
      issues: write
      pull-requests: write
    steps:
      - uses: actions/checkout@v6
        with:
          fetch-depth: 0

      - uses: event-catalog/agents@main
        env:
          ANTHROPIC_API_KEY: ${{ secrets.ANTHROPIC_API_KEY }}
        with:
          agent: breaking-changes
          catalog-repo: your-org/your-catalog
          catalog-token: ${{ secrets.EVENTCATALOG_TOKEN }}

fetch-depth: 0 is required so the agent can diff the pull request against its base.

2. Add your model provider key

Add the API key for your chosen model as a secret in your repository (Settings → Secrets and variables → Actions). Use the one that matches your model, for example ANTHROPIC_API_KEY, OPENAI_API_KEY, or OPENROUTER_API_KEY.

You can see the list of available models here.

3. Open a pull request that changes a schema

When a pull request changes a schema, the agent reviews the schema diff. If it finds a breaking change, it comments on the pull request with the affected EventCatalog consumers.

Configuration

Inputs

Input	Required	Default	Description
agent	No	code-to-docs	Set this to breaking-changes to run the Breaking Changes agent.
catalog-repo	Yes		The EventCatalog repository to inspect, in owner/repo format.
catalog-ref	No	main	Branch checked out from the catalog repository.
catalog-token	No	github.token	Token used to check out the catalog repository. Use a token with read access when the catalog is in another private repository.
model	No	anthropic/claude-sonnet-4-6	Model specifier for the agent. See available models.
ignore-paths	No	common build/output paths	Comma-separated paths or glob patterns to ignore in pull request diffs.
schema-extensions	No	.json,.yml,.yaml,.avro,.avsc,.proto,.graphql,.gql	Comma-separated file extensions the agent treats as message schemas.

Schema extensions

By default, the agent checks common schema files:

schema-extensions: .json,.yml,.yaml,.avro,.avsc,.proto,.graphql,.gql

If your message contracts live in another file type, add that extension:

- uses: event-catalog/agents@main
  env:
    ANTHROPIC_API_KEY: ${{ secrets.ANTHROPIC_API_KEY }}
  with:
    agent: breaking-changes
    catalog-repo: your-org/your-catalog
    catalog-token: ${{ secrets.EVENTCATALOG_TOKEN }}
    schema-extensions: .json,.yaml,.ts

Only add source-code extensions when those files contain message contracts. The agent ignores non-schema files for this workflow.

Provider API keys

The model provider's API key is passed as a normal workflow environment variable. Set the one that matches your model:

Provider	Environment variable
Anthropic	ANTHROPIC_API_KEY
OpenAI	OPENAI_API_KEY
OpenRouter	OPENROUTER_API_KEY

The agent supports models from many providers. See the full list of model specifiers at pi.dev/models.

Run with Code-to-Docs

Each Action step runs one EventCatalog agent. To run Breaking Changes and Code-to-Docs on the same pull request, add two steps:

- uses: event-catalog/agents@main
  env:
    ANTHROPIC_API_KEY: ${{ secrets.ANTHROPIC_API_KEY }}
  with:
    agent: breaking-changes
    catalog-repo: your-org/your-catalog
    catalog-token: ${{ secrets.EVENTCATALOG_TOKEN }}

- uses: event-catalog/agents@main
  env:
    ANTHROPIC_API_KEY: ${{ secrets.ANTHROPIC_API_KEY }}
  with:
    agent: code-to-docs
    catalog-repo: your-org/your-catalog
    catalog-token: ${{ secrets.EVENTCATALOG_TOKEN }}

Use Breaking Changes when you want pull request feedback about schema compatibility. Use Code-to-Docs when you want catalog documentation updates proposed as a separate pull request.

Early access

The Breaking Changes agent is in early access and free to evaluate. In the future, a license will be required to run EventCatalog Agents in production.

Found an issue or have feedback?

The Breaking Changes agent is open on GitHub at event-catalog/agents. If you hit a problem, or the agent reports something in a way you didn't expect, open an issue and let us know. Your feedback during early access directly shapes how the agent works.
