Application Sidebar

View as Markdown

---

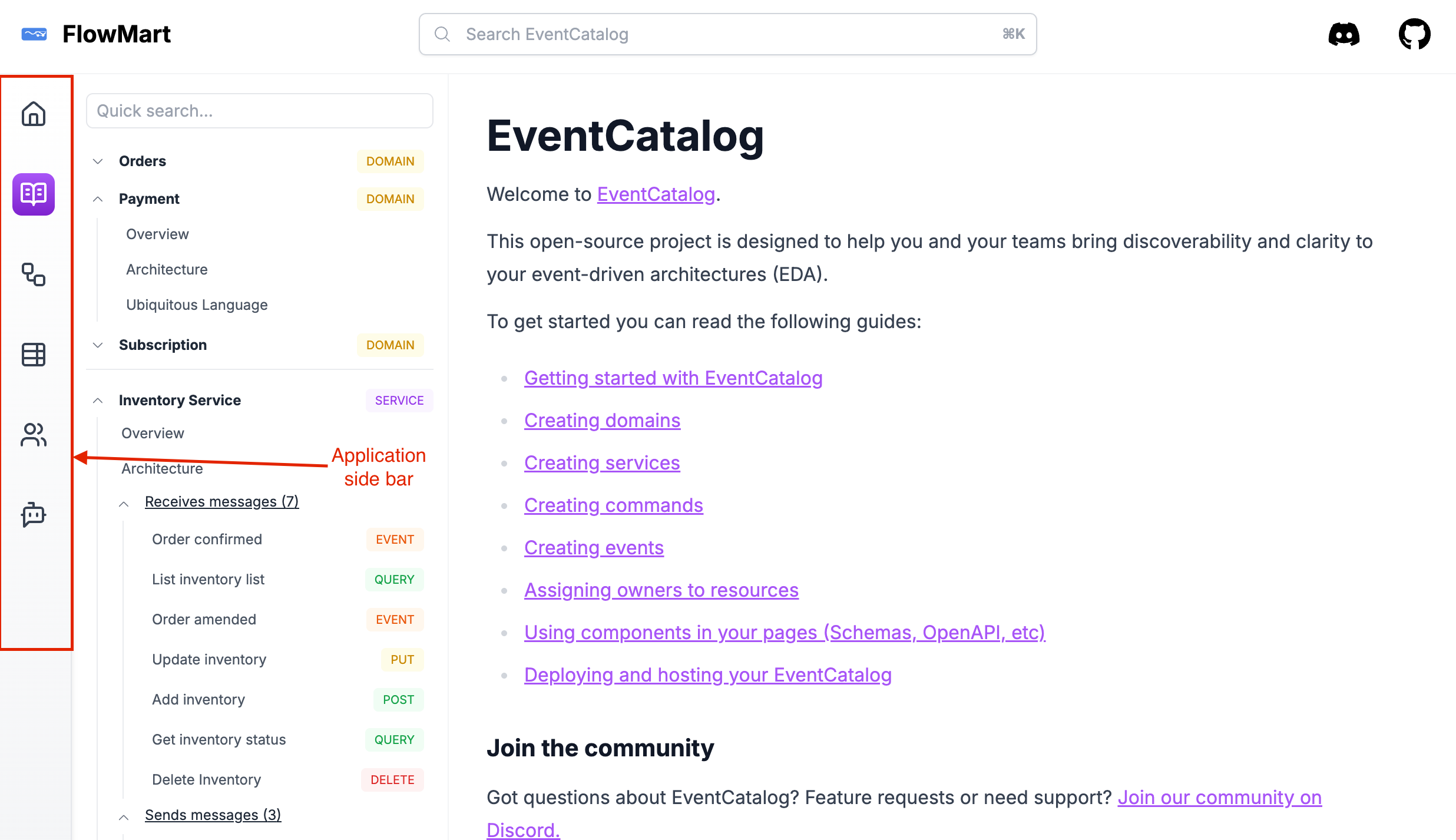

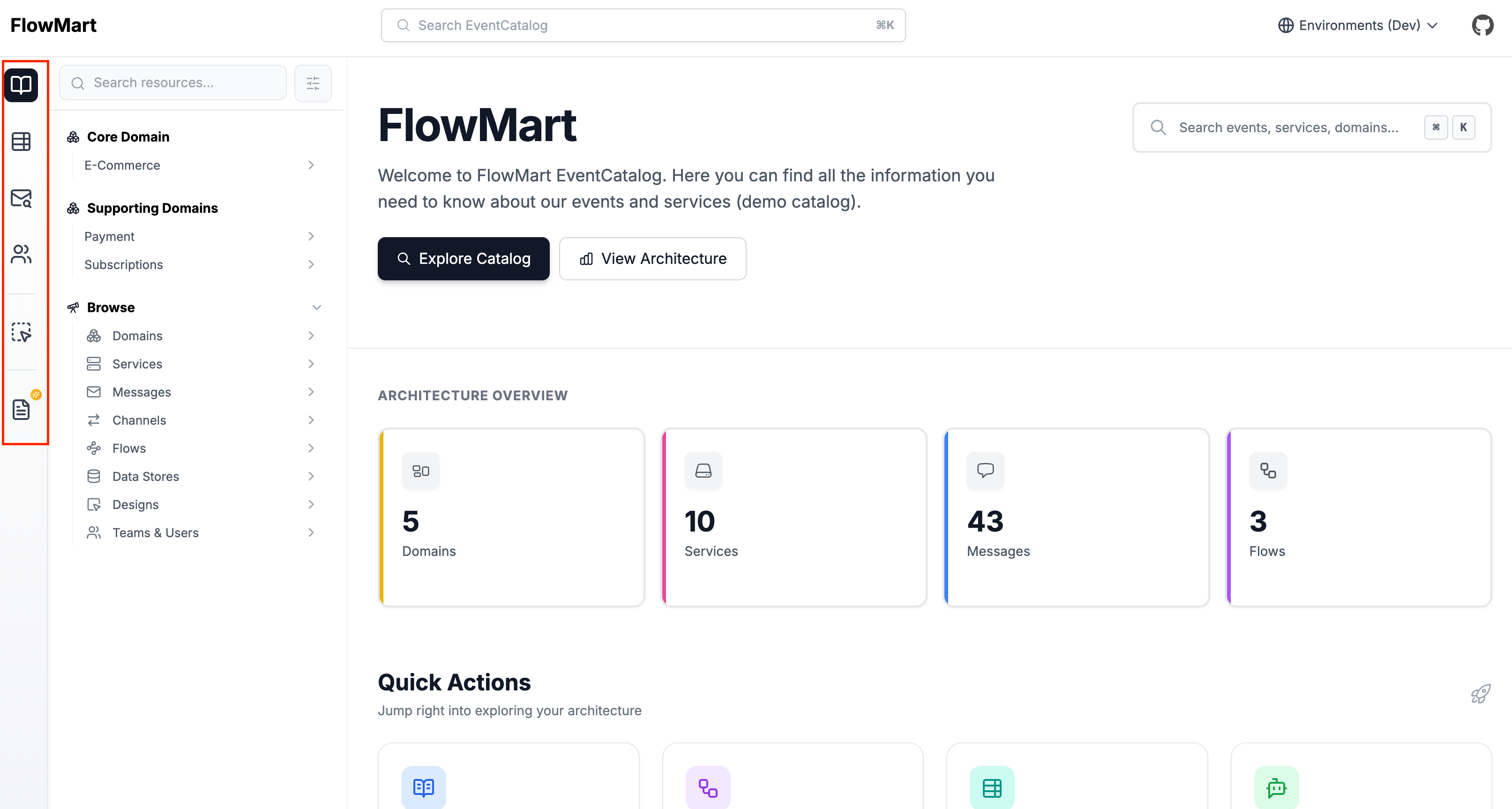

The application sidebar is the sidebar that is rendered on every page in EventCatalog.

Show/hide items in the application sidebar

Added in eventcatalog@3.39.5

You can show or hide items in the application sidebar by using the sidebar property in your eventcatalog.config.js file.

By default, all items in the sidebar are shown.

eventcatalog.config.js

// rest of the config
sidebar: [
  {
    id: '/schemas/explorer',
    // This will hide the Schema Explorer
    visible: false,
  },
  {
    id: '/discover/events',
    // This will hide the Events item
    visible: false,
  },
]

Options for the sidebar property:

• id: The id of the item to hide.
• visible: Whether to show or hide the item.

ID	Description
/	The home page icon
/docs/custom	The custom documentation page
/discover/domains	The domains page
/discover/services	The services page
/discover/external-systems	The external systems page
/discover/events	The events page
/discover/commands	The commands page
/discover/queries	The queries page
/discover/flows	The flows page
/discover/containers	The data stores page
/discover/data-products	The data products page
/directory/teams	The teams page
/directory/users	The users page
/settings/general	The settings page
/studio	The EventCatalog Studio icon
/schemas/explorer	The schema explorer page
/schemas/fields	The schema insights page (SSR only)

Use legacy group ids

You can also use legacy group ids to hide all items in a section at once. Setting a group id to visible: false hides every item that belongs to that group.

Legacy ID	Items hidden
/docs	/docs/custom
/discover	All discover items (domains, services, events, commands, queries, flows, data stores, data products, external systems)
/directory	/directory/teams and /directory/users
/settings	/settings/general

eventcatalog.config.js

// rest of the config
sidebar: [
  {
    id: '/directory',
    // This will hide both Teams and Users
    visible: false,
  },
]
