Welcome to the monthly update for EventCatalog. July was our biggest release month so far. We shipped EventCatalog v4, and then kept shipping on top of it, moving from 4.0.0 all the way to 4.3.4 by the end of the month.

The theme was one we have been building towards for a while: EventCatalog is no longer only about documenting events. It is about documenting your software architecture, and giving both your engineers and your AI tools a graph they can actually reason about.

• EventCatalog v4 and systems
• Custom pages and API routes
• Map commands to the events they trigger
• Scoped MCP servers
• Custom properties on resources
• A better Discover experience
• Schema Explorer improvements
• Entities go deeper
• Other project improvements

EventCatalog v4 and systems​

EventCatalog started in 2022 as a small open source project for documenting events. More than 40,000 catalogs later, it is clear our community is not only documenting events, they are documenting their software architecture.

EventCatalog v4 is the first release shaped around that. The headline change is systems, a new first-class resource that sits between domains and implementation detail.

• Domains describe a business boundary or bounded context.
• Systems describe a software capability or an external system.
• Resources describe the services, messages, flows, data stores, entities, and diagrams inside that system.

Your Payments domain might contain a Payment Processing System, and that system owns the API, the worker, the events, the data store, the checkout flow, and the entities involved in authorization and capture. It gives teams a natural place to document the thing they actually own, rather than a flat list of services.

Systems also define relationships to other systems and actors, and EventCatalog turns those into system context maps.

Read the system context map docs

The context diagram answers "how does this system fit into the wider architecture?". Add <NodeGraph /> to a system page and you get the lower-level resource diagram too, which answers "what is this system made of?". Architects usually want the first view, engineers making a change usually want the second.

v4 also brought a single Catalog experience with a Kind filter (instead of separate explore pages per resource type), configurable navigation.groups for the application sidebar, and two capabilities moving into Community Edition: custom homepages and diagram comparison.

You can read more in the v4 announcement and the v4 upgrade guide.

Custom pages and API routes​

Every organization eventually needs a page that does not fit a predefined resource type. A service scorecard. A migration tracker. A review workflow. A platform health dashboard that combines catalog structure with deployment and incident data.

As of 4.1.0, you can build those pages inside EventCatalog. Drop Astro files into a top-level pages directory and they get served alongside the rest of your catalog.

---
import Layout from '@catalog/layouts/Layout.astro';
import { getServices } from '@catalog/utils';

const services = await getServices({ getAllVersions: false });
---

<Layout title="Service reports" description="Operational views built from catalog data.">
  <p>There are {services.length} services in this catalog.</p>
</Layout>

That page is served at /custom/reports, and you can add it to the application sidebar with navigation.groups so it feels like part of the catalog rather than something bolted on.

Read the custom pages docs

API routes live in pages/api and give you the server-side half: expose catalog data as JSON, receive a form submission, proxy an internal platform, or pull service health from your observability tool. They need EventCatalog running in server mode.

If you use AI coding agents, there is a custom-pages-and-apis skill in our skills repository that gives your agent the conventions so you do not have to remember them yourself.

You can read more in the custom pages release post.

Map commands to the events they trigger​

This one is my favourite from July, and it did not get its own announcement.

Your catalog has always been able to tell you that OrderService receives the CreateOrder command and produces OrderCreated and OrderRejected. What it could not tell you is which of those events came from which command, and under what circumstances. That relationship lived in someone's head, or in the code.

EventCatalog 4.2.0 adds a triggers property so you can map commands to the events they produce.

---
id: OrderService
version: 1.0.0
name: Order service
receives:
  - id: CreateOrder
    version: 1.0.0
    triggers:
      - id: OrderCreated
        version: 1.0.0
        condition: When payment is authorized and stock is available
      - id: OrderRejected
        version: 1.0.0
        condition: When payment fails or stock is unavailable
---

The optional condition is what makes this genuinely useful. It lets you document the scenario, so a command producing a success event or a failure event, a branch driven by a business rule, or two different paths that happen to produce the same event, are all visible on the page rather than implied.

Read the map commands to events docs

The relationship is bidirectional. Commands list their events under Triggers, and each event page lists the commands that can produce it under Triggered by. Messages that take part in at least one resolved relationship also get a dedicated Map commands to events page, with one visual row per path and its scenarios.

The same release improved the visualiser: the resource you are currently viewing now stays visibly marked as the focus of the graph, context menus let you focus another node in its own map, and edge labels render above edges so intersecting paths no longer hide their text. Trigger pointers are supported in the SDK too.

Scoped MCP servers​

More context is not always better context.

Our MCP server already let AI tools query your entire architecture, which is exactly what you want for organization-wide dependency questions. But most engineers spend their day inside a much smaller boundary, and an agent loading Shipping, Identity, and Analytics resources to answer a refunds question just adds noise.

From 4.3.0, EventCatalog exposes a scoped MCP endpoint for every domain and system.

https://your-eventcatalog.com/docs/mcp/domains/payments
https://your-eventcatalog.com/docs/mcp/systems/payment-processing/1.2.0

Your AI tool can now connect at the level that matches the question it needs to answer:

Open a domain or system page, select Connect to MCP server, and you get a URL for that part of the catalog. The scoped server includes the selected resource and follows its relationships recursively, so the client gets the connected architecture graph including services, messages, schemas, flows, ubiquitous language, and ADRs, without pulling in unrelated parts of the catalog.

Connect a team's tooling to the domain they own once, and engineers stop having to restate boundaries in every prompt. The same release added an mcp.enabled config option if you want to turn the built-in server off entirely.

You can read more in the scoped MCP servers release post.

Custom properties on resources​

EventCatalog gives you first-class fields for the common concepts: owners, messages, relationships, schemas, repositories. But every organization has metadata that is specific to its own platform and processes, and until now there was nowhere clean to put it.

4.2.3 adds custom properties. Any top-level frontmatter field prefixed with x- is treated as your own metadata.

---
id: PaymentAPI
name: Payment API
version: 1.0.0
x-operational-tier: 1
x-on-call:
  schedule: payments-primary
  escalation-channel: '#payments-incidents'
---

Values can be strings, numbers, booleans, arrays, or nested objects, and they work on domains, systems, services, agents, messages, channels, flows, containers, entities, data products, diagrams, and ADRs. New <CustomProperties> and <CustomProperty> MDX components render them on the page, so operational tiers, recovery objectives, and on-call schedules can live next to the architecture they describe.

A better Discover experience​

Two small changes that make a big difference when your catalog gets large.

Discover table filters now persist in the URL. Searches, filters, and toggles survive a page reload, and more importantly you can share a filtered view as a link rather than telling someone which six filters to click.

Domains also got a type filter for root domains and subdomains, and subdomains now render nested under their parent in the name column. If you use subdomains heavily, the list finally reflects the hierarchy you actually modelled.

Schema Explorer improvements​

The Schema Explorer's version comparison used to only show you consecutive-version diffs, which is fine until someone asks "what changed between 1.0.0 and 2.3.0?".

You can now pick any two versions to diff using From/To selectors. We also fixed $ref resolution for remote JSON schemas, so local and remote pointers are inlined properly instead of rendering as unresolved $ref values, and fixed SchemaViewer portal targeting when multiple schemas share the same id on a page.

Entities go deeper​

Entities picked up recursive embedded properties in 4.3.2, so you can model nested structures properly rather than flattening them out. You can also opt in to whole-entity relationship targets, embedded properties render in both entity documentation and visualiser nodes, and generated entity maps come out more compact.

Other project improvements​

• Custom documentation tools (getCustomDocs, searchCustomDocs, getCustomDoc) added to AI Chat and the MCP Server, with section-level full-text search (#2670)
• New getGraph API in the SDK (#2726)
• SDK support for architecture decision records (#2659)
• Linter support for the new system resources (#2665)
• create-eventcatalog can now optionally install EventCatalog Skills when scaffolding a new project (#2688)
• Stable, versionless URLs for the latest service's specifications, changelog, and attached documentation (#2740)
• Navigation loading indicator so slower SSR page transitions give feedback instead of appearing unresponsive (#2722)
• Improved sidebar group collapsing, persistence, and resizing (#2743)
• Bumped to Astro 7.1.1 with updated @astrojs integrations (#2723)
• Fixed: static builds crashing with TypeError: Missing parameter: id when trailingSlash: true (#2690)
• Fixed: AI chat API URL not respecting a custom base path (#2682)
• Fixed: cropped and colorless visualiser image exports (#2683)
• Fixed: changelog diffs and raw Markdown endpoints resolving the wrong file paths in SSR deployments (#2712, #2708)
• Fixed: the linter failing to load dependencies from an ESM eventcatalog.config.js (#2678)
• Fixed: sidebar collapse state for ADR status groups (#2731)
• Fixed: proper favicons served instead of the logo image (#2697)
• Removed the EventCatalog DSL import command and Compass playground integration from the CLI (#2738)

Thanks​

Thanks to everyone who contributed to EventCatalog this month by opening issues, reporting bugs, and suggesting features, including Benjamin Otto, Alex Dunne, omid eidivandi, Dominik Szczepaniak, Wenzel, Max Dobler, Jan, Christian Johansen, and many more.

Shipping a major version and then iterating on it this fast only works because people tell us what broke.

What's coming in August?​

A few things we're working on:

• More improvements to systems, context maps, and the Catalog experience now that v4 is out
• Continued work on EventCatalog Agent and the Code-to-Docs workflow
• More ways to bring catalog context into the tools your teams already use

If you have any questions or want to join our community exploring EventCatalog and event-driven architecture feel free to join us!

Until next time!, Dave

Welcome to the monthly update for EventCatalog, here you can find what's next, how to get started, and what's coming next.

• EventCatalog Linter
• New Entity Resource and Entity Map
• Fetching Schemas at Runtime
• Better Search Capabilities (Search v2)

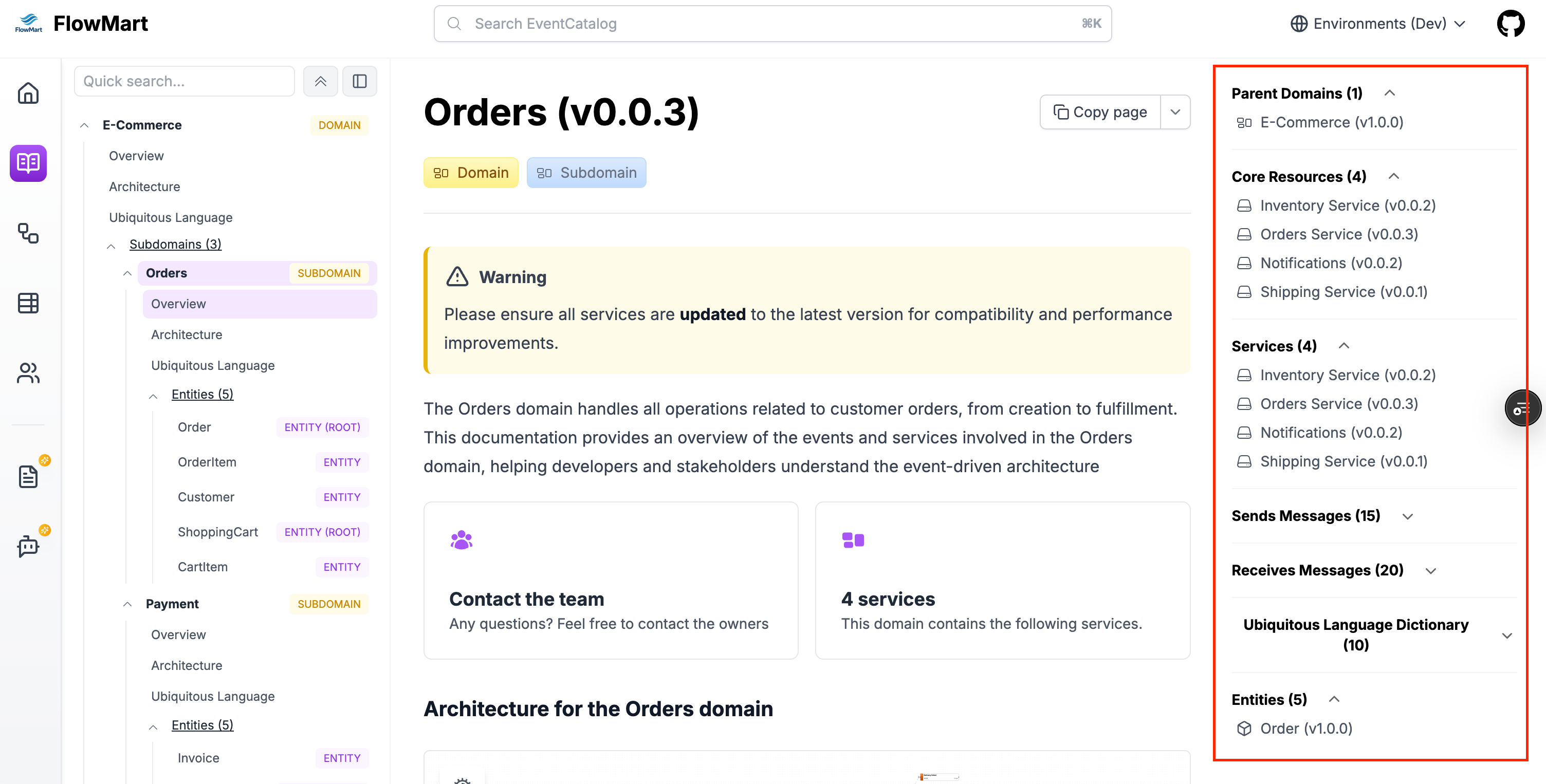

• Customize Your Documentation Pages (Detail Panel)
• Updated Ubiquitous Language Explorer
• AsyncAPI and OpenAPI Generator Enhancements
• Other project improvements

EventCatalog Linter​

We're excited to introduce the EventCatalog Linter — a powerful tool to help you maintain consistency and quality across your architecture documentation. The linter helps catch common issues, enforces best practices, and ensures your EventCatalog stays well-organized as it grows.

The linter can be integrated into your CI/CD pipelines to catch issues early and maintain documentation standards across your team.

$ npx @eventcatalog/linter

services/user-service/index.mdx
  ✖ error version: Invalid semantic version format [version] (schema/valid-semver)
  ⚠ warning Summary is required for better documentation [summary] (best-practices/summary-required)

✖ 2 problems

domains/sales/index.mdx
  ✖ error Referenced service "order-service" does not exist [services] (refs/resource-exists)

✖ 1 problem

✖ 3 problems (2 errors, 1 warning)
  2 files checked

To get started with the EventCatalog Linter, you can read our quick guide in our documentation here.

New Entity Resource and Entity Map​

We've introduced Entity Resources and the new EntityMap component to help you document and visualize your domain entities and their relationships. This new feature allows you to:

• Document your domain entities with rich metadata
• Visualize entity relationships across your architecture
• Track how entities flow through your systems
• Better understand your domain model

See Demo

The Entity Map provides a visual representation of your domain entities and their relationships, making it easier to understand your domain model at a glance.

Using the EntityMap component you can embed the entity map into your documentation pages and pick and choose which entities to display.

Fetching Schemas at Runtime​

EventCatalog now supports fetching schemas at runtime with the new Remote Schemas component, allowing you to dynamically load and display schema information without needing to rebuild your catalog. This feature is particularly useful for:

• Large organizations with frequently changing schemas
• Dynamic schema registries
• Keeping documentation in sync with live systems

This capability ensures your documentation stays up-to-date with the latest schema changes without manual intervention.

You can read more about the RemoteSchema component here.

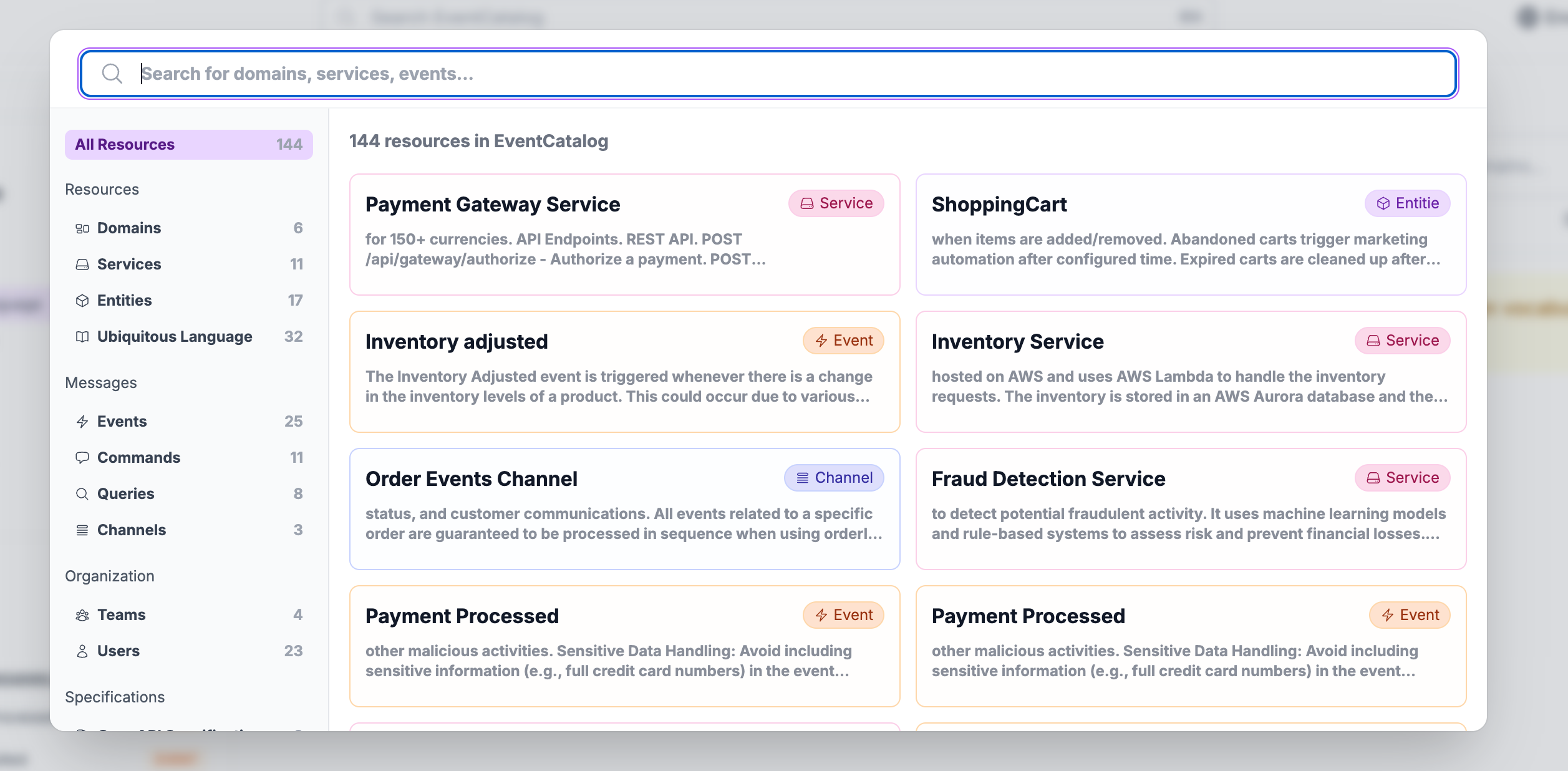

Better Search Capabilities (Search v2)​

We've completely rebuilt our search experience with Search v2. The new search provides:

• Faster, more accurate results
• Better filtering options
• Improved relevance scoring
• Enhanced autocomplete
• Search across all resource types including entities

Try the new search

The improved search makes it much easier to find the information you need across your entire EventCatalog.

To get started, just update your EventCatalog with the command:

$ npm install @eventcatalog/core@latest

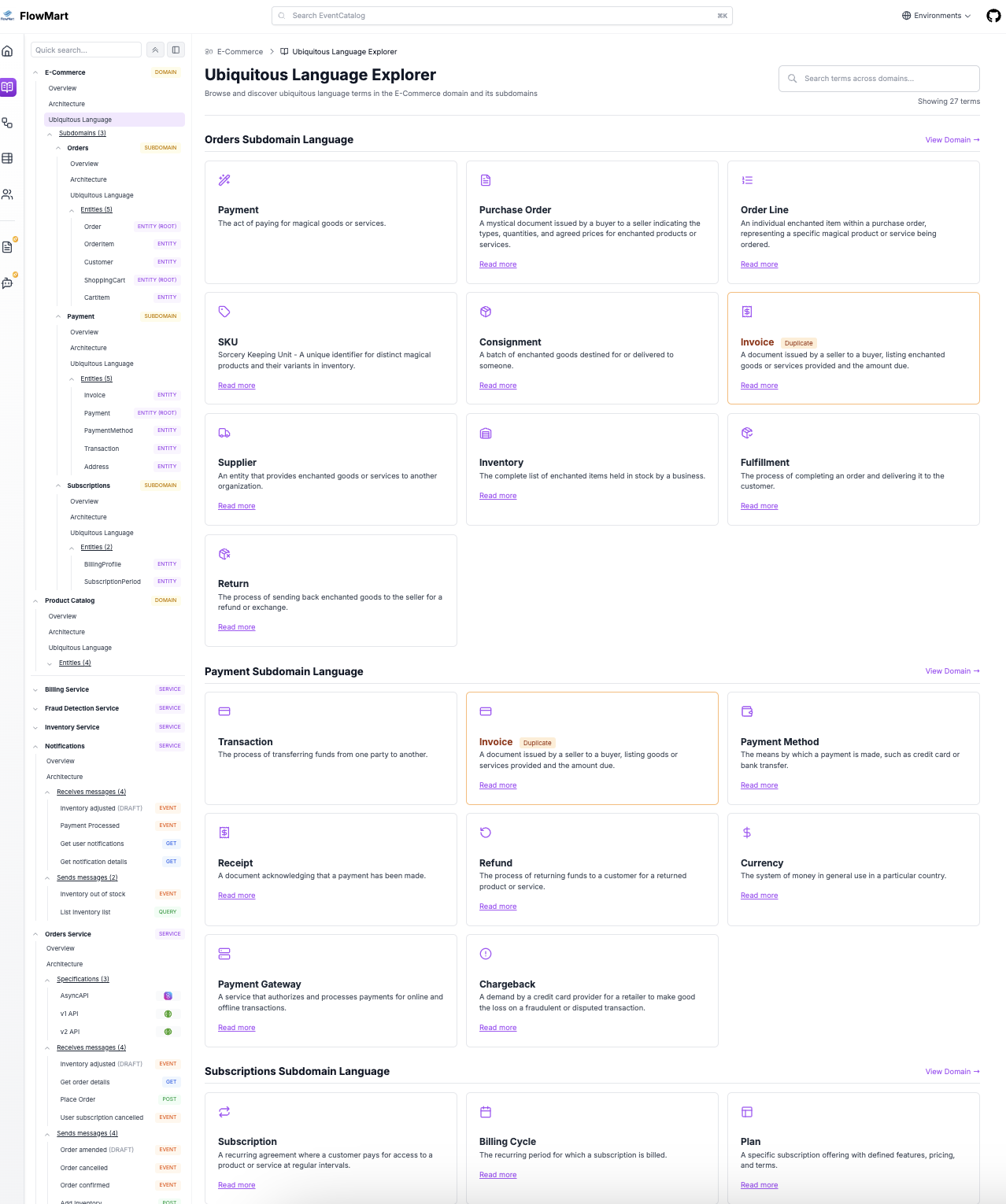

Updated Ubiquitous Language Explorer​

The Ubiquitous Language Explorer has been significantly improved with:

• Bigger, more prominent display making it easier to browse your domain language
• Subdomain language integration — terms from subdomains now appear in their parent domains
• Better organization of domain-specific terminology
• Enhanced navigation through your ubiquitous language

Explore the demo

This makes it much easier for teams to discover and understand the shared language across domains and subdomains.

AsyncAPI and OpenAPI Generator Enhancements​

Our AsyncAPI and OpenAPI generators have received significant updates:

Draft Support for life cycle management​

You can now mark resources as draft during generation, allowing you to:

• Tell your team that a message or endpoint is still in development
• Iterate on designs without affecting live documentation
• Maintain work-in-progress resources separately

You can read more about the draft support here.

Markdown Templates​

The generators now support custom markdown templates, giving you:

• Full control over generated documentation format
• Ability to match your organization's documentation standards
• Flexible content generation based on your needs

These enhancements make the generators much more flexible and suitable for enterprise workflows.

Other project improvements​

• Improved performance for large catalogs
• Updated Astro Versions
• New EventCatalog SDK version to support Entities

What's coming in August?​

In August, we are focused on EventCatalog Studio. We are working on a visual interface for managing your EventCatalog, making it even easier for non-technical team members to contribute to your documentation. You can sign up for the early access release here.

We are also working on notifications. These will be webhook notifications you can setup and listen to when things in your catalog change. Examples of these are schema changes, breaks, new versions, etc. Usecase's include:

• Teams getting notified when a new version of a schema is published
• Trigger contract tests or infustructure when schemas change
• Provision new infrastructure when a new version of a service is published
• Trigger a build when a new version of a service is published

If you have any questions or want to join our community of over 1200 people exploring EventCatalog and event-driven architecture feel free to join us!
